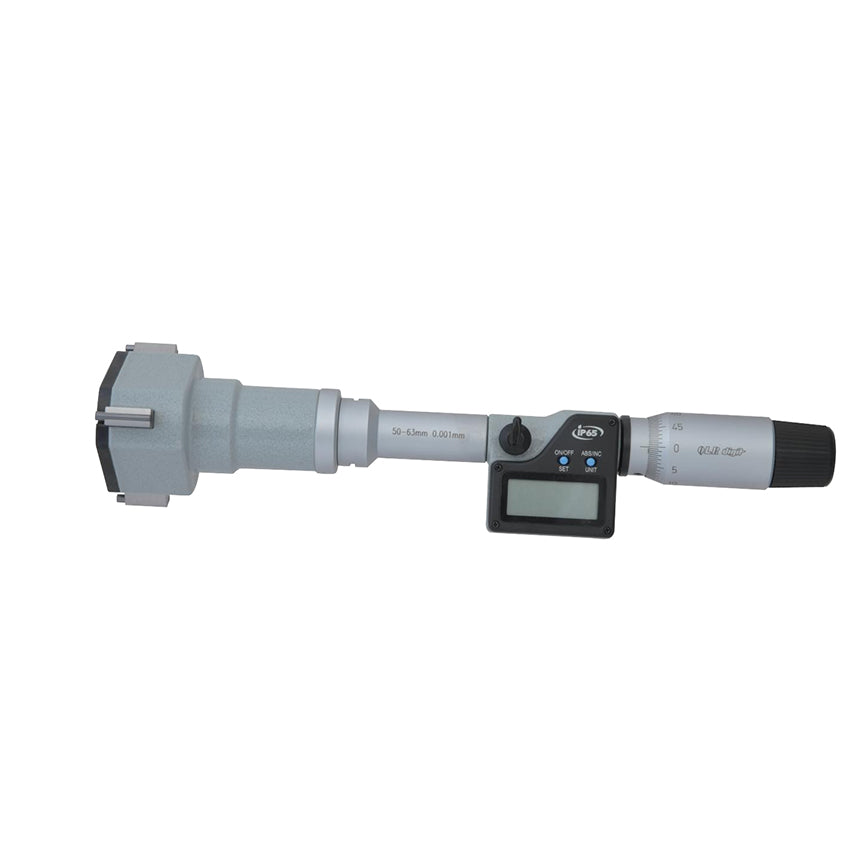

335-10-650 Electronic three-point inside micrometer

335-10-650 Electronic three-point inside micrometer

$247.00
$247.00
Sale Sold out

SKU:

Free Shipping

Free standard shipping on orders over 9.00 $

Return Policy

Returns within 30 days of receiving the item, as long as products are in their original condition, unused, and in the original packaging. Refunds or exchanges are available once the return is processed, with some exceptions based on the item’s condition and category.

MORE
View full details

Description

335-61-650

Page 24-69

Measurement parameters

Part Number Measuring range Accuracy Calibration ring gauge L1 Extension rod
335-10-650 50-63mm 0.005mm Φ62mm 114mm 150mm
335-11-650 62-75mm 0.005mm Φ62mm 114mm 150mm
335-12-650 75-88mm 0.005mm Φ87mm 114mm 150mm
335-13-650 87-100mm 0.005mm Φ87mm 114mm 150mm
335-61-650 100-125mm 0.005mm Φ100mm 145mm 150mm
335-62-650 125-150mm 0.005mm Φ150mm 145mm 150mm
335-63-650 150-175mm 0.005mm Φ150mm 145mm 150mm
335-64-650 175-200mm 0.005mm Φ200mm 145mm 150mm
335-65-650 200-225mm 0.007mm Φ200mm 145mm 150mm
335-66-650 225-250mm 0.007mm Φ250mm 145mm 150mm
335-67-650 250-275mm 0.007mm Φ250mm 145mm 150mm
335-68-650 275-300mm 0.007mm Φ275mm 145mm 150mm

Dimensions

Enterprise WeChat screenshot_1704682805189

Set of rulers (335-50-650)

Page 24-70

Measurement parameters

Part Number Measuring range of ruler Calibration ring gauge A Extension rod
Chrome plating on the outer surface
385-22-650 2-3mm Φ2.5mm / /
385-33-650 3-6mm Φ4,5,6mm / /
335-44-550 6-12mm Φ6,8,10mm 0.5mm 100mm
335-44-650 6-12mm Φ6,8,10mm 1.5mm 100mm
335-46-650 12-20mm Φ16mm 0.5mm 150mm
335-48-650 20-50mm Φ25,40mm 0.5mm 150mm
External surface spray painting
335-50-650 50-100mm Φ62,87mm 0.5mm 150mm
