Description
Measurement parameters
| Part Number | Measuring range | Accuracy |
|---|---|---|
| 297-11-450 | 0-25mm | ±0.002mm |
| 297-12-450 | 25-50mm | ±0.002mm |
| 297-13-450 | 50-75mm | ±0.003mm |
| 297-14-450 | 75-100mm | ±0.003mm |
| 297-15-450 | 100-125mm | ±0.003mm |
| 297-16-450 | 125-150mm | ±0.003mm |
| 297-17-450 | 150-175mm | ±0.004mm |
| 175mm-275mm is a horseshoe ruler | ||
| 297-18-450 | 175-200mm | ±0.005mm |
| 297-19-450 | 200-225mm | ±0.006mm |
| 297-20-450 | 225-250mm | ±0.007mm |
| 297-21-450 | 250-275mm | ±0.008mm |
Probe
Dimensions

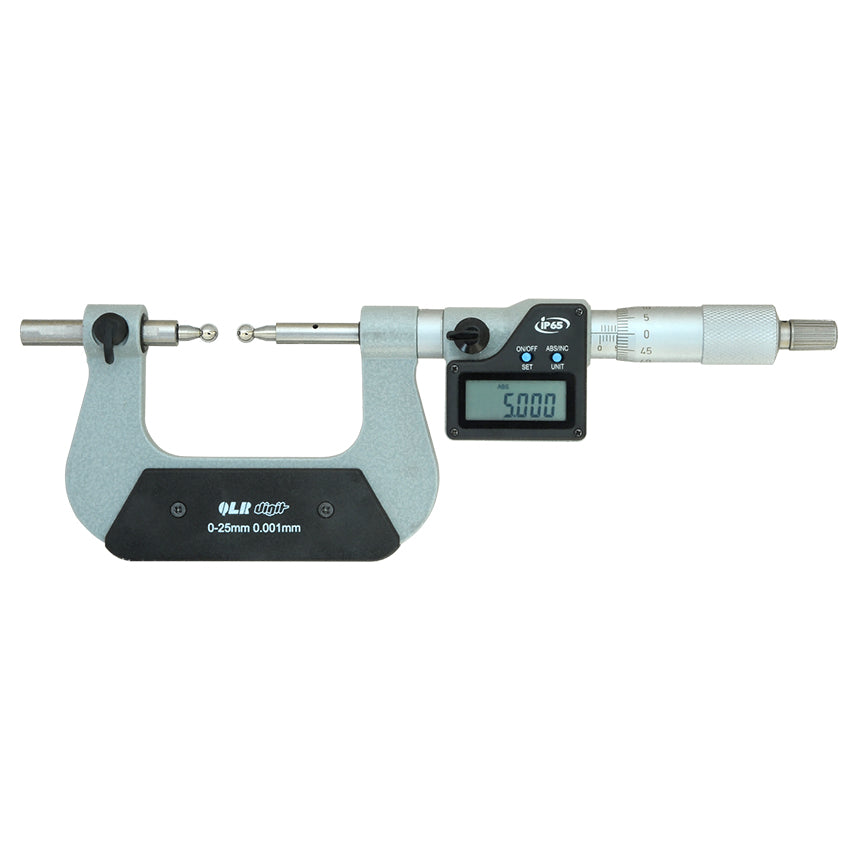

Interchangeable ball probe (optional)
| Part Number | Ball diameter | Gear module | Pitch |
|---|---|---|---|
| F0701 | Φ1mm | 0.6-0.65 | 45 |
| F0702 | Φ1.5mm | 0.9-1.0 | 28-26 |
| F0703 | Φ2.0mm | 1.25 | 22 |
| F0704 | Φ2.5mm | 1.5 | 17 |
| F0705 | Φ3.0mm | 1.75 | 15 |
| F0706 | Φ3.5mm | 2 | 13 |
| F0707 | Φ4.0mm | 2.25 | 11 |
| F0708 | Φ4.5mm | 2.5 | 10 |
| F0709 | Φ5.0mm | 2.75 | 9 |
| F0710 | Φ6.0mm | 3.5 | 7 |
| F0711 | Φ7.0mm | 4 | 6.5 |
| F0700 | Full set |
Measuring pitch diameter
Measuring the root dimensions of special-shaped parts
