Description
Measurement parameters
|
Part Number |
Measuring range | Accuracy | ||
|---|---|---|---|---|
| A-type probe | B-type probe | C-type probe | ||
| Bow depth 50mm | ||||

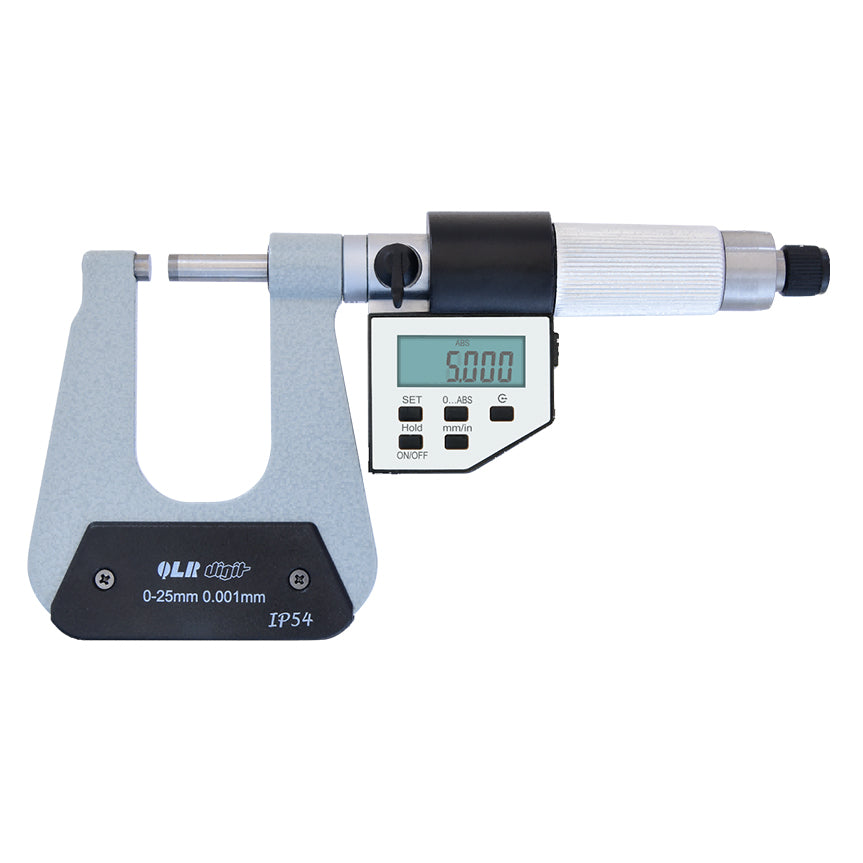

| 233-01-040 | 233-11-040 | 233-21-040 | 0-25mm | ±0.002mm |
| 233-02-040 | 233-12-040 | 233-22-040 | 25-50mm | ±0.002mm |
| Bow depth 100mm | ||||
| 233-03-040 | 233-13-040 | 233-23-040 | 0-25mm | ±0.003mm |
| 233-04-040 | 233-14-040 | 233-24-040 | 25-50mm | ±0.003mm |
| Bow depth 150mm | ||||
| 233-05-040 | 233-15-040 | 233-25-040 | 0-25mm | ±0.003mm |
| 233-06-040 | 233-16-040 | 233-26-040 | 25-50mm | ±0.003mm |
| Bow depth 300mm | ||||
| / | 233-17-040 | 233-27-040 | 0-25mm | ±0.004mm |
| / | 233-18-040 | 233-28-040 | 25-50mm | ±0.004mm |
