Description
Measurement parameters
|
Part Number |
Measuring range | Accuracy | ||
|---|---|---|---|---|
| A-type probe | B-type probe | C-type probe | ||
| Bow depth 50mm | ||||
| 203-01-000 | 203-11-000 | 203-21-000 | 0-25mm | 0.004mm |
| 203-02-000 | 203-12-000 | 203-22-000 | 25-50mm | 0.004mm |
| Bow depth 100mm | ||||
| 203-03-000 | 203-13-000 | 203-23-000 | 0-25mm | 0.005mm |
| 203-04-000 | 203-14-000 | 203-24-000 | 25-50mm | 0.005mm |
| Bow depth 150mm | ||||

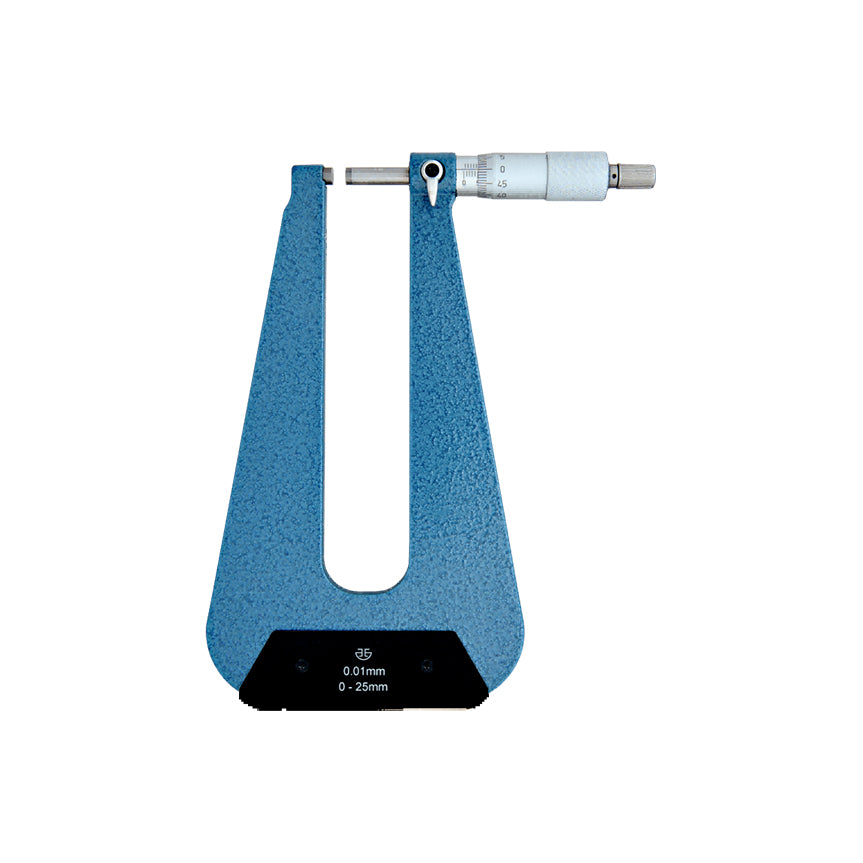

| 203-05-000 | 203-15-000 | 203-25-000 | 0-25mm | 0.006mm |
| 203-06-000 | 203-16-000 | 203-26-000 | 25-50mm | 0.006mm |
| Bow depth 300mm | ||||
| / | 203-17-550 | 203-27-000 | 0-25mm | 0.007mm |
| / | 203-18-550 | 203-28-000 | 25-50mm | 0.007mm |
