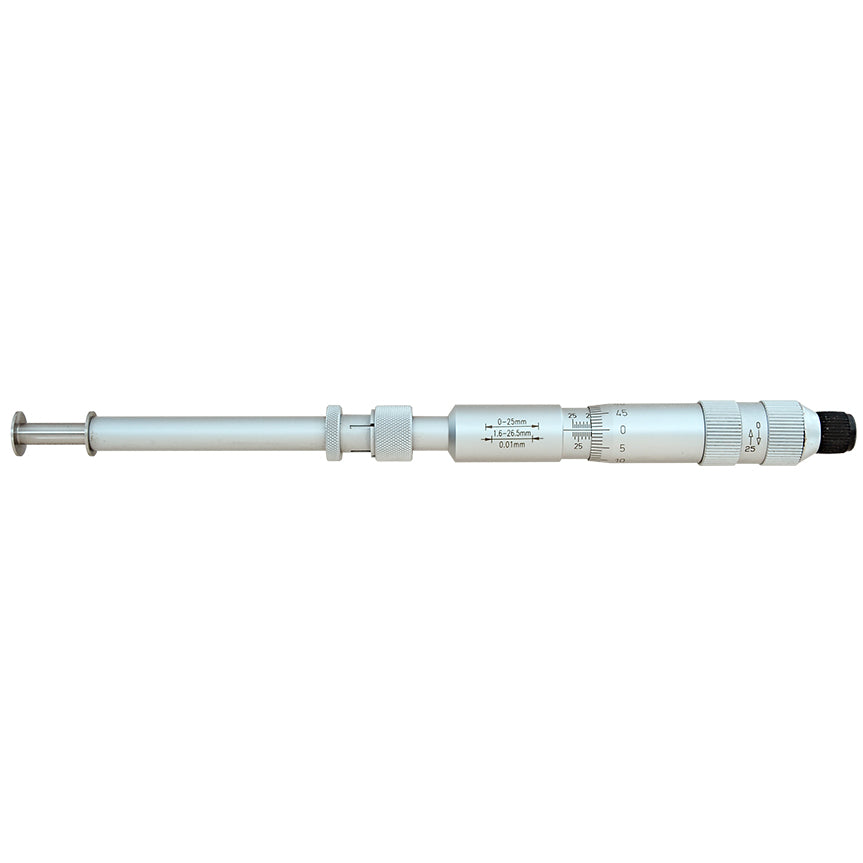

202-72-030 Slot micrometer (bidirectional force measurement)

202-72-030 Slot micrometer (bidirectional force measurement)

$282.00
$282.00
Sale Sold out

SKU:

Free Shipping

Free standard shipping on orders over 9.00 $

Return Policy

Returns within 30 days of receiving the item, as long as products are in their original condition, unused, and in the original packaging. Refunds or exchanges are available once the return is processed, with some exceptions based on the item’s condition and category.

MORE
View full details

Description

202-70-030

Positive and negative force measuring slot micrometer 202-70-030


Measurement parameters

Part Number Measuring range
 Accuracy Parallelism D

External dimensions Inner dimension


202-70-030 0-25mm 1.6-26.5mm 0.01mm 0.01mm Φ6.5mm
202-71-030 0-25mm 1.6-26.5mm 0.01mm 0.01mm Φ13mm
202-72-030 25-50mm 26.5-51.5mm 0.01mm 0.01mm Φ13mm
202-73-030 50-75mm 51.5-76.5mm 0.01mm 0.01mm Φ13mm
202-74-030 75-100mm 76.5-101.5mm 0.01mm 0.01mm Φ13mm

Dimensions


Main dimensions

Measuring range L
0-25mm 25mm
25-50mm 50mm
50-75mm 75mm
75-100mm 100mm

Measuring inner hole step height

Page 45-160

Measuring the internal groove width

Page 45-159
