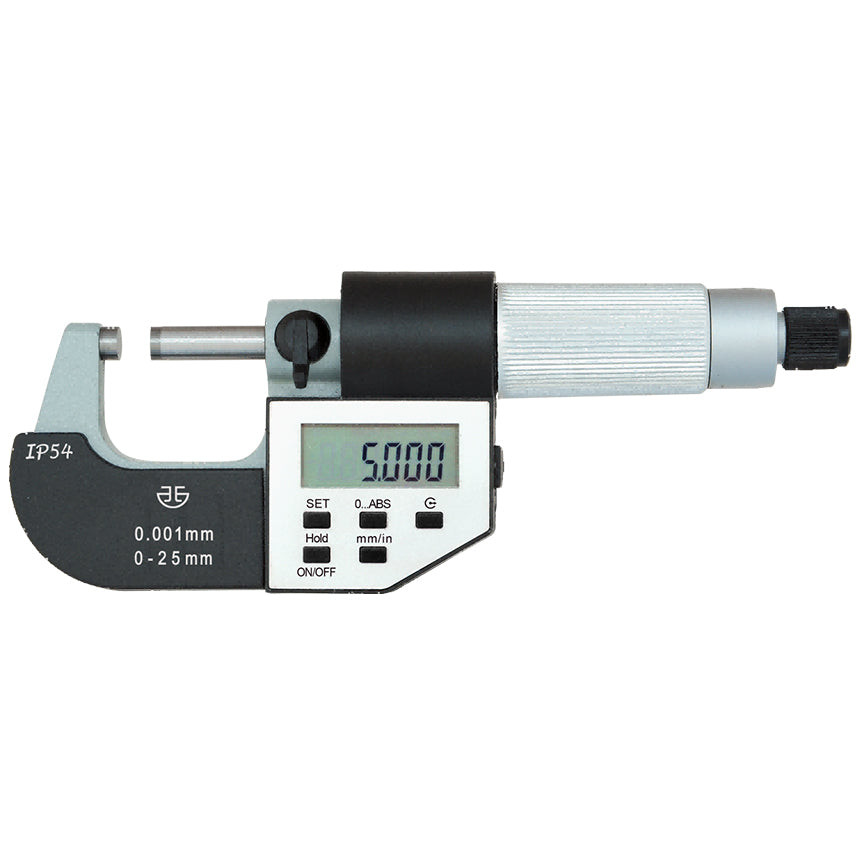

132-01-040 Electronic outside micrometer

132-01-040 Electronic outside micrometer

$89.00
$89.00
Sale Sold out

SKU:

Free Shipping

Free standard shipping on orders over 9.00 $

Return Policy

Returns within 30 days of receiving the item, as long as products are in their original condition, unused, and in the original packaging. Refunds or exchanges are available once the return is processed, with some exceptions based on the item’s condition and category.

MORE
View full details

Description

Measurement parameters

Part Number

 Measuring range Accuracy Resolution
132-01-040 0-25mm ±0.002mm 0.001mm
132-02-040 25-50mm ±0.002mm 0.001mm
132-03-040 50-75mm ±0.003mm 0.001mm
132-04-040 75-100mm ±0.003mm

0.001mm
132-05-040 100-125mm ±0.003mm 0.001mm
132-06-040 125-150mm ±0.003mm 0.001mm
132-07-040 150-175mm ±0.004mm 0.001mm
132-08-040 175-200mm ±0.004mm 0.001mm

Dimensions

Enterprise WeChat screenshot_17034754059555

Main dimensions

Measuring range A B C L
0-25mm 6mm 3.0mm 24mm 32mm
25-50mm 8mm 3.0mm 32mm 57mm
50-75mm 8mm 3.0mm 45mm 82mm
75-100mm 8mm 3.0mm 57mm 107mm
100-125mm 8mm 3.0mm 70mm 133mm
125-150mm 8mm 3.0mm 82mm 158mm
150-175mm 8mm 5.5mm 95mm 183mm
175-200mm 8mm 5.5mm 107mm 209mm

Function

power button √
Absolute/relative measurement mode switching √
Metric/Imperial measurement mode switch √
Absolute measurement initial value setting key √
Display data output key √
Data retention √
battery model CR2032
Automatic power-off √
RS232 output interface √
Interface cable (optional) P1505

Electronic outside micrometer measurement diagram
