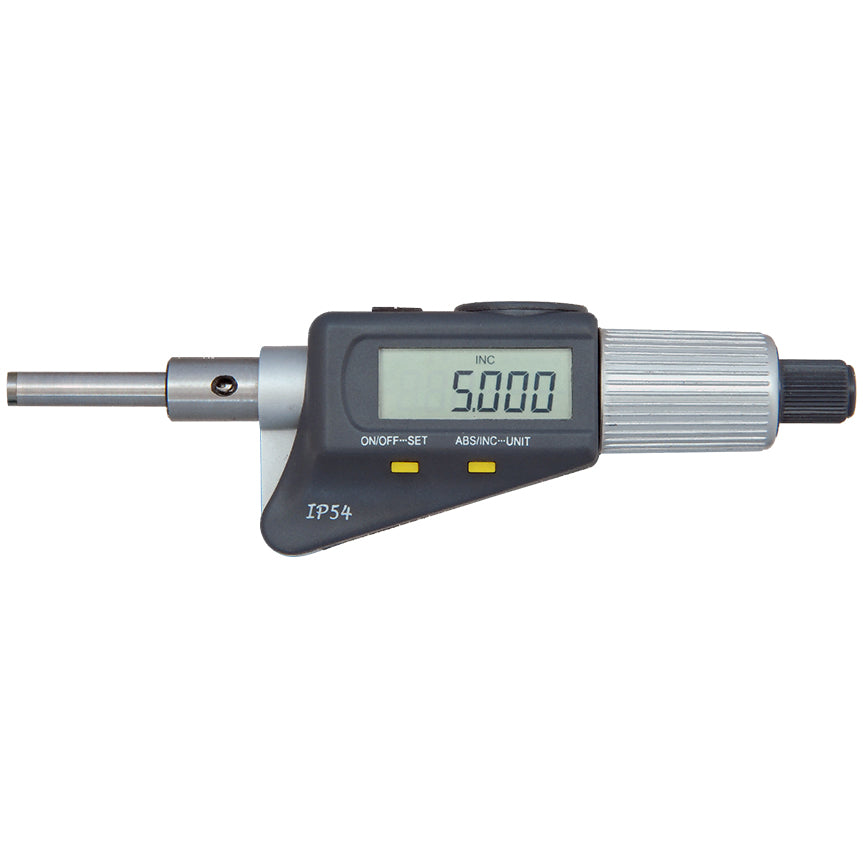

0900-632 Double-sided digital micrometer head

0900-632 Double-sided digital micrometer head

$118.00
$118.00
Sale Sold out

SKU:

Free Shipping

Free standard shipping on orders over 9.00 $

Return Policy

Returns within 30 days of receiving the item, as long as products are in their original condition, unused, and in the original packaging. Refunds or exchanges are available once the return is processed, with some exceptions based on the item’s condition and category.

MORE
View full details

Description

Measurement parameters

Part Number Measuring range Accuracy Resolution Model
0900-632 0-30mm 0.003mm 0.001mm Carbide flat measuring surface
0900-732 0-30mm 0.003mm 0.001mm Carbide flat measuring surface
0910-632 0-30mm 0.003mm 0.001mm Carbide ball measuring surface
0910-732 0-30mm 0.003mm 0.001mm Carbide ball measuring surface

Dimensions

Enterprise WeChat screenshot_1703550367937

Main dimensions

Part Number
 A C D L
0900-632 0910-632 17.5mm Φ6.5mm 34mm 159mm
0900-732 0910-732 20.5mm Φ8.0mm 34mm 162mm

Function

power button √
Absolute and relative measurement mode switch key √
Metric and Imperial measurement mode switch key √
Display data output key √
Absolute measurement initial value setting key √
Display screen shows adjustment direction √
battery model CR2032
Automatic power-off √
Data output port √
Interface cable (optional) P1505

Four measurement states

Enterprise WeChat screenshot_17035503888187(1)
