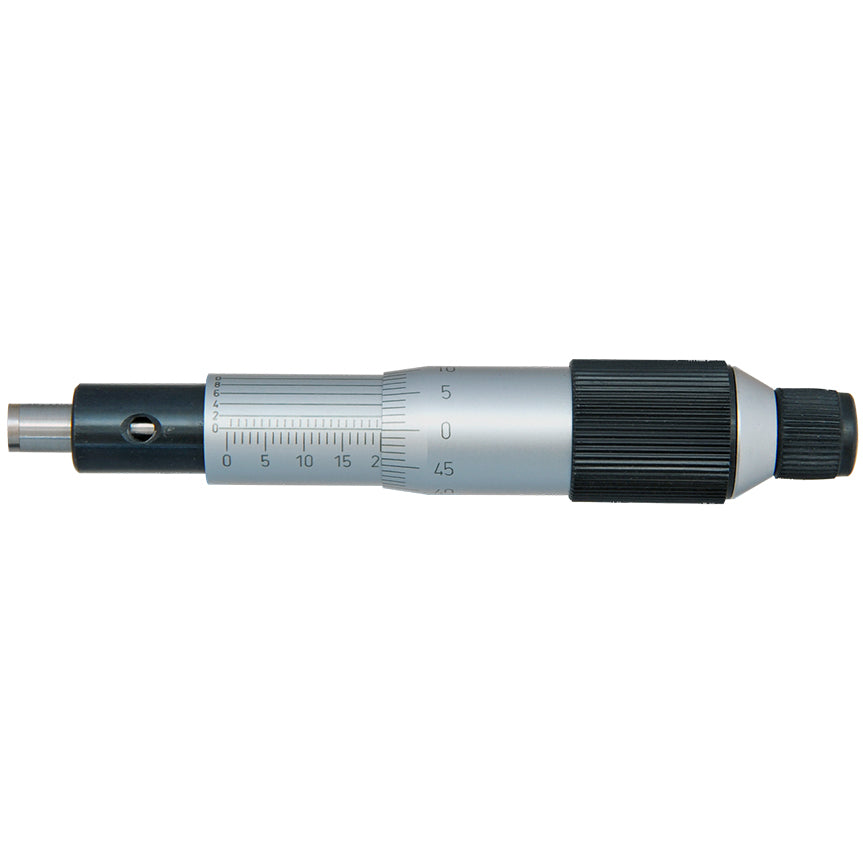

0003-130/0003-120 Micrometer Head

0003-130/0003-120 Micrometer Head

$149.00
$149.00
Sale Sold out

SKU:

Free Shipping

Free standard shipping on orders over 9.00 $

Return Policy

Returns within 30 days of receiving the item, as long as products are in their original condition, unused, and in the original packaging. Refunds or exchanges are available once the return is processed, with some exceptions based on the item’s condition and category.

MORE
View full details

Description

Measurement parameters

Part Number Measuring range Accuracy Resolution Model
A=17.5
D=Φ6.5		 A=20.5
D=Φ8



Ratchet force measurement
0003-000 0603-000 0-25mm 0.003mm 0.01mm Carbide flat measuring surface
0013-000 0613-000 0-25mm 0.003mm 0.01mm Carbide ball measuring surface
Friction force measurement
0003-020 0603-020 0-25mm 0.003mm 0.01mm Carbide flat measuring surface
0013-020 0613-020 0-25mm 0.003mm 0.01mm Carbide ball measuring surface
Ratchet force measurement
0003-030 0603-030 0-25mm 0.003mm 0.01mm Carbide flat measuring surface
0013-030 0613-030 0-25mm 0.003mm 0.01mm Carbide ball measuring surface
Ratchet force measurement
0003-100 0603-100 0-25mm 0.003mm 0.02mm Carbide flat measuring surface
0013-100 0613-100 0-25mm 0.003mm 0.02mm Carbide ball measuring surface
Friction force measurement
0003-120 0603-120 0-25mm 0.003mm 0.02mm Carbide flat measuring surface
0013-120 0613-120 0-25mm 0.003mm 0.02mm Carbide ball measuring surface
Ratchet force measurement
0003-130 0603-130 0-25mm 0.003mm 0.02mm Carbide flat measuring surface
0013-130 0613-130 0-25mm 0.003mm 0.02mm Carbide ball measuring surface



Dimensions

Enterprise WeChat screenshot_17032284744633



Main dimensions

Part Number A D L
00X3-X00 17.5mm Φ6.5mm 113mm
00X3-X20 17.5mm Φ6.5mm 110mm
00X3-X30 17.5mm Φ6.5mm 110mm
06X3-X00 20.5mm Φ8.0mm 116mm
06X3-X20 20.5mm Φ8.0mm 113mm
06X3-X30 20.5mm Φ8.0mm 113mm
